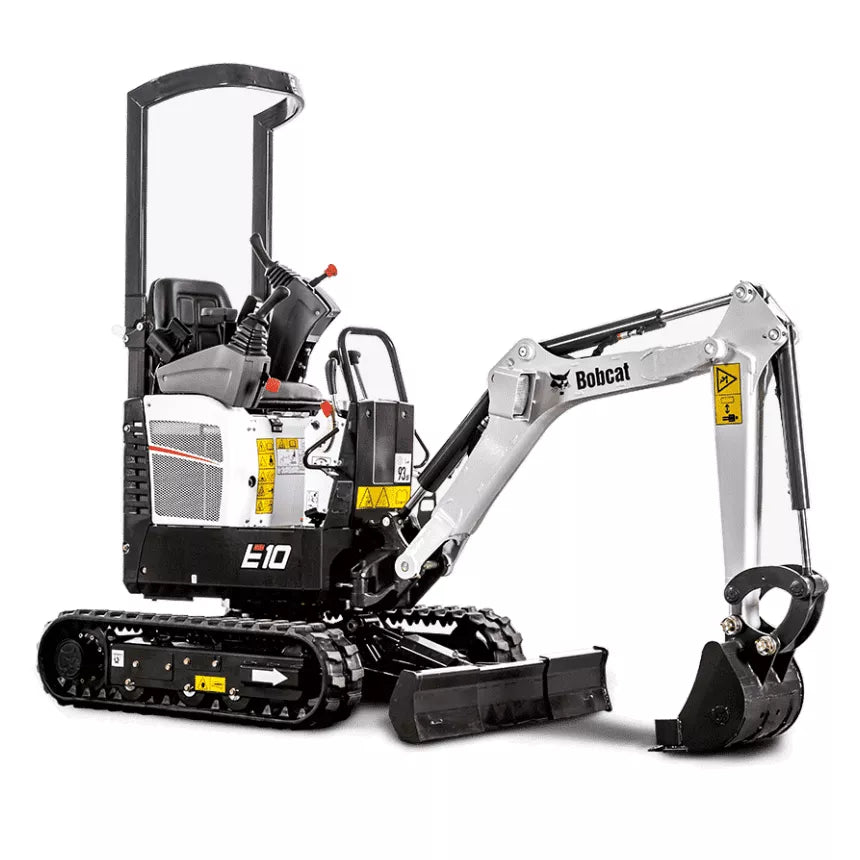

Bobcat E10z Mini Excavator

Bobcat E10z Mini Excavator

Regular price
Sale price
Unit price
Tax included. Shipping calculated at checkout.

With a retracted track width of only 71 cm, the Bobcat® E10z compact excavator (mini excavator) can access difficult and cramped jobsites where exhausting manual labour is your only other option. This model navigates through narrower openings and can operate in more confined areas than other excavators. The zero tail swing gives you the greatest flexibility to pivot and deposit soil while offering the most protection against accidental contact with surrounding property.

Key Specifications

Operating weight
1176 kg
Digging depth
1.8 m
Engine power
7.5 kW
Digging breakout force
5550 N
Tail swing type


Operating weight with TOPS canopy and bucket (ISO 6016)
1176.00 kg
Transport mass (no attachment)
1077.00 kg
Ground pressure with rubber tracks
29.70 kPa

Working Range

Bucket pivot angle
196.00 °
Maximum reach of working equipment
3145.00 mm
Maximum reach at ground level
3093.00 mm
Maximum working equipment radius with boom at maximum height and dipperstick fully retracted
1374.00 mm
Maximum blade height
196.00 mm
Maximum blade depth
230.00 mm
Maximum height of working equipment with dipperstick retracted
1899.00 mm
Maximum bucket tooth height
2685.00 mm
Maximum dump height
1818.00 mm
Maximum depth of vertical wall which can be excavated
1383.00 mm
Maximum digging depth
1820.00 mm
